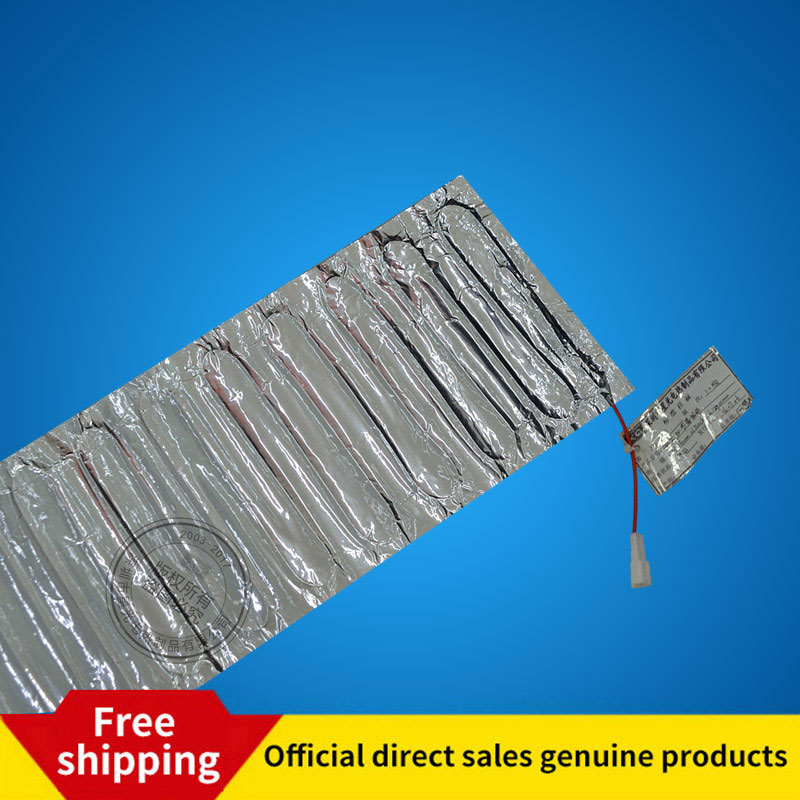

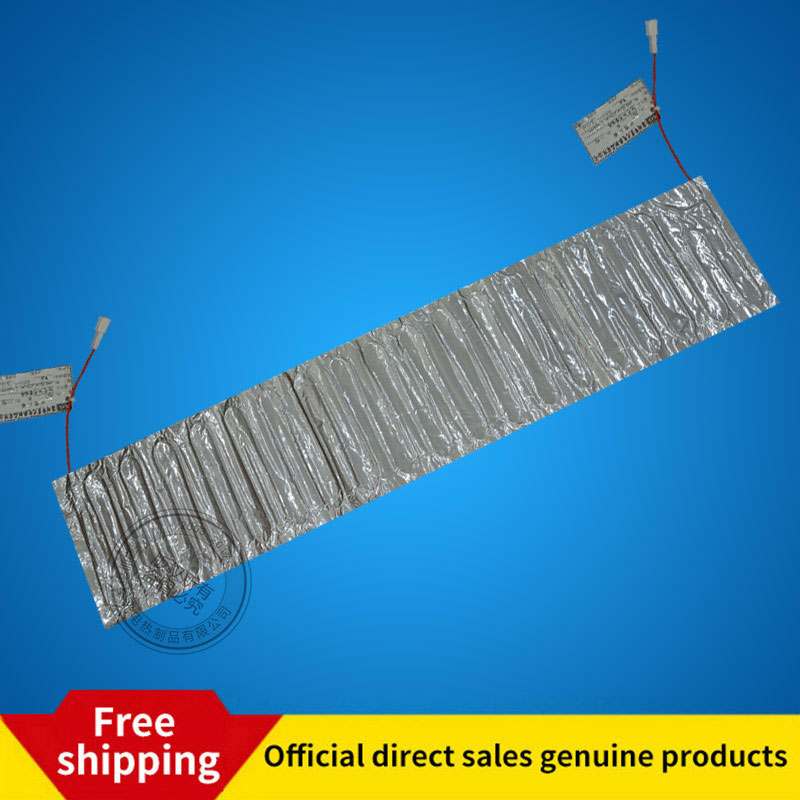

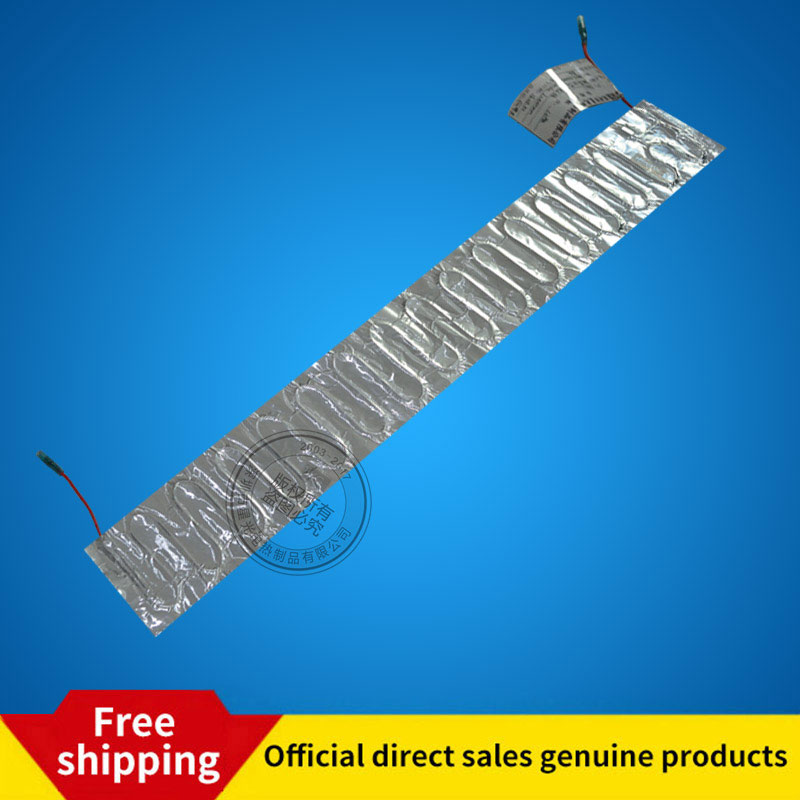

Aluminum Foil Compensation Heating Sheet

  • 200W Printer Heating Sheet

  • Type:Aluminum Foil Compensation Heating Sheet
  • Product specifications:1850MM×80MM
  • Product model:220V-230V/200W/PCS
  • Product color:Silver white
  • Consult immediatelyClick through volume:2764

Parameter table

Product details

XingGuang has long produced large printers and aluminum foil heating sheets for sprayers, due to the production efficiency of large printers is relatively fast, conventional natural drying has been unable to meet its own needs, which often leads to paper friction resulting in fuzzy fonts, seriously affecting the quality of the printer

Specification of printer aluminum foil heating element

                Product Name                Product Size                working voltage                Product power                Working current                Heating conductor
                Printer heating element                1650MM×80MM                220V-230V                180W/PCS                220V-0.81A                Heating wire
                Printer heating element                1850MM×80MM                220V-230V                200W/PCS                220V-0.90A                Heating wire
                Printer heating element                1950MM×80MM                220V-230V                210W/PCS                220V-0.96A                Heating wire
                Printer heating element                3250MM×80MM                220V-230V                350W/PCS                220V-1.60A                Heating wire

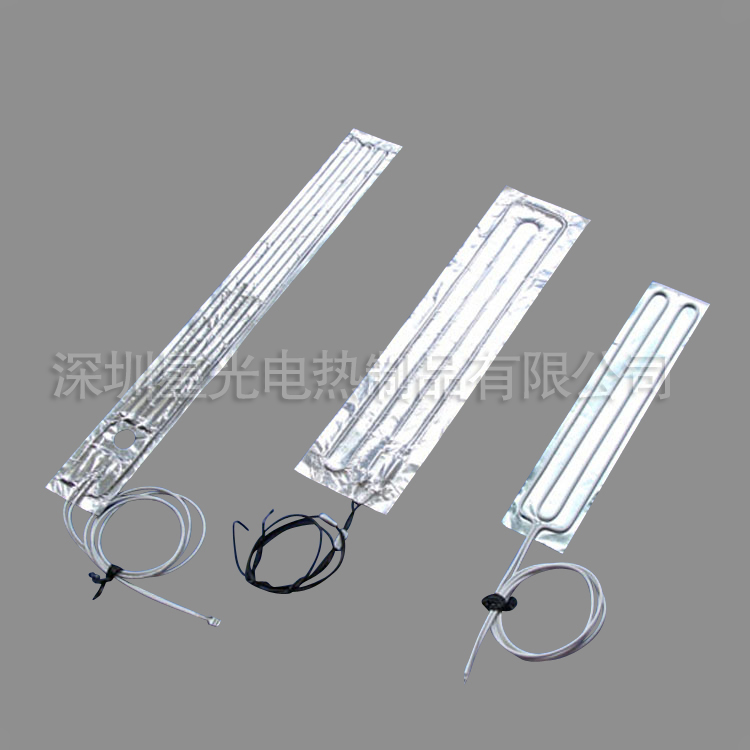

Print aluminum foil heating element diagram

Noted : About using heating sheet
Aluminum foil heating sheet adopts the process of aluminum foil and double-sided adhesive principle, the internal use of UL3323 silicone heating wire components produced by XingGuang Company, the temperature resistance is 200℃, can be used for a long time below 150℃, stable performance, can be pasted on any clean object, the paste process, if there is oil should be removed after pasting, to avoid the heating sheet falling off, to two Second use brings difficulty. After the paste is completed, apply a clean cotton cloth to wipe it flat, so that the product paste more firmly !

Noted : Cooperation on heating sheet
Due to the particularity of aluminum foil heating sheet products, electric heating sheet customization rate of 100%, buyers should first consult the XingGuang’s Business Department,  explain the conditions of use and product size, as well as working voltage, both sides after the end of product communication, will initiate sample orders to the production and technical department, complete the proofing needs, the whole sample process is expected to 7-10 days, the delivery of large goods 15-20 days, because The customization rate is high, and the company has developed a minimum working standard of 1000PCS for MOQ

Noted : Shipment about Aluminum foil heating sheet
Size of Aluminum foil electric heating sheet products are thin and long, it is difficult to effectively package the product, and the transportation process is easy to break, which brings transportation failures to the heating sheet. At present, the standard transportation method used by the company is car delivery, so the company's quotation for the product is the default does not include shipment costs .







XingGuang has long produced large printers and aluminum foil heating sheets for sprayers, due to the production efficiency of large printers is relatively fast, conventional natural drying has been unable to meet its own needs, which often leads to paper friction resulting in fuzzy fonts, seriously affecting the quality of the printer

Specification of printer aluminum foil heating element

                Product Name                Product Size                working voltage                Product power                Working current                Heating conductor
                Printer heating element                1650MM×80MM                220V-230V                180W/PCS                220V-0.81A                Heating wire
                Printer heating element                1850MM×80MM                220V-230V                200W/PCS                220V-0.90A                Heating wire
                Printer heating element                1950MM×80MM                220V-230V                210W/PCS                220V-0.96A                Heating wire
                Printer heating element                3250MM×80MM                220V-230V                350W/PCS                220V-1.60A                Heating wire


Print aluminum foil heating element diagram

Noted : About using heating sheet
Aluminum foil heating sheet adopts the process of aluminum foil and double-sided adhesive principle, the internal use of UL3323 silicone heating wire components produced by XingGuang Company, the temperature resistance is 200℃, can be used for a long time below 150℃, stable performance, can be pasted on any clean object, the paste process, if there is oil should be removed after pasting, to avoid the heating sheet falling off, to two Second use brings difficulty. After the paste is completed, apply a clean cotton cloth to wipe it flat, so that the product paste more firmly !

Noted : Cooperation on heating sheet
Due to the particularity of aluminum foil heating sheet products, electric heating sheet customization rate of 100%, buyers should first consult the XingGuang’s Business Department,  explain the conditions of use and product size, as well as working voltage, both sides after the end of product communication, will initiate sample orders to the production and technical department, complete the proofing needs, the whole sample process is expected to 7-10 days, the delivery of large goods 15-20 days, because The customization rate is high, and the company has developed a minimum working standard of 1000PCS for MOQ

Noted : Shipment about Aluminum foil heating sheet
Size of Aluminum foil electric heating sheet products are thin and long, it is difficult to effectively package the product, and the transportation process is easy to break, which brings transportation failures to the heating sheet. At present, the standard transportation method used by the company is car delivery, so the company's quotation for the product is the default does not include shipment costs .
